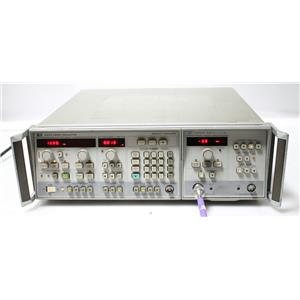

HP/Agilent 8350A Sweep Oscillator w HP 83522A RF Plug-In 10 MHz - 2.4 GHz

$1,200.00
SKU: AR_HP 83522A

Availability: 1 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

Up for sale is a used HP/Agilent 8350A Sweep Oscillator w HP 83522A RF Plug-In 10 MHz - 2.4 GHz.

It has been tested and is in good working condition (See Last 2 Pictures)

Sold AS-IS.



Original Manufacturer Description:

The HP 83522A provides high performance 10 MHz to 2.4 GHz frequency coverage in one continuous sweep. Frequency accuracy is maintained within 5 MHz over the full band. The power output is internally leveled to ± 0.25 dB flatness over the entire range while maintaining a power level ± 13 dBm

The HP 83522A and the HP 83525A/B plug-ins have a calibrated output power range of typically 15 dB that may be extended to > 80 dB with Option 002 (70 dB attenuator). The output power level accuracy is within 1 dB on the HP 83522A and within 1.5 dB on the HP 83525A/B.

The power sweep function sweeps a 15 dB power range for characterizing level sensitive devices like amplifiers and transistors. The slope mode is supplied to provide compensation for cable or test set losses.

The HP 83522A and the HP 83525A/B are completely programmable plug-ins. This infers that the power level, power mode (power sweep, slope, etc.), crystal markers and other plug-in functions may be externally controlled via the HPIB
