Details
It has been tested and is in good working condition.
Original Manufacturer Description:
Features

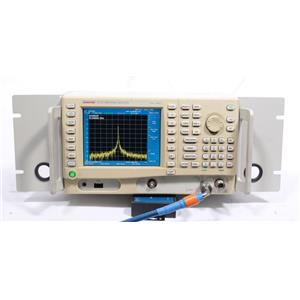

31 GHz resps. 43 GHz Allround portable Microwave Spectrum Analyzer for field and in-house applications
3-way power supply, 220 V, 11 to 17 V DC and battery operation
Preamp to 8 GHz and 100 Hz resolution bandwidth
brilliant 6,5 TFT display
various and modern interfaces, LAN / USB / GPIB
variety of built-in automatic pushbutton measurements
Main Specifications
Frequency range : 9 kHz to 31/resps. 43 GHz
Signal purity : -85 dBc/10 kHz offset
Overall Amplitude Accuracy : ± 0.8 dB(up to 3.1 GHz), ± 1.0 dB (up to 8 GHz)
Maximum input level : +30 dBm, +10 dBm for input 2, 10 MHz - 31/resps. 43 GHz
Sensitivity : -118 dBm, -133 dBm (with pre-amp), -109 dBm at 26 GHz
Level accuracy: >=± 0.8 dB to 3.1GHz
RBW : 100 Hz to 3 MHz
Sweep time : 20 ms/50 us (zero-span)
Three traces : A, B and C trace available.
Detector : RMS, Normal, Positive, Negative, Sample
Measurement Functions : Power, OBW, ACP, Harmonics, Spurious, Counter
-
