Agilent 8563EC 9Hz - 26.5GHz RF Spectrum Analyzer with Option 007

Agilent 8563EC 9Hz - 26.5GHz RF Spectrum Analyzer with Option 007

$4,800.00

SKU: AR_Agilent 8563EC 374

Availability: 1 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

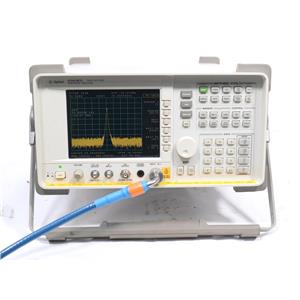

Up for sale is a used Agilent 8563EC 9Hz - 26.5GHz RF Spectrum Analyzer.

It has been tested and is in good working condition.

Option Installed:

007 Digitized Fast Time Domain Sweeps

Original Manufacturer Description:

The 8563EC has a color display and frequency range of 30 Hz to 26.5 GHz, which covers the spur-search ranges specified by leading standards organization in Europe and the United States for GSM. With its fast DLP execution speed, 8562EC reduces your test times in production.

Performance

+/-1.0 dB absolute amplitude accuracy
-151 dBm/Hz displayed average noise level (DANL)
<-113 dBc/Hz phase noise at 10 kHz offset

Features

Fast digital resolution bandwidths of 1 Hz to 3 MHz
Portable, MIL-PRF-28800, Class 3 rugged
