Agilent/ Keysight E8257N (E8257D) 40GHz PSG Sweep Generator OPT 007 1E1 UNT UNW

SKU: AR_Keysight E8257N

Availability: 1 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

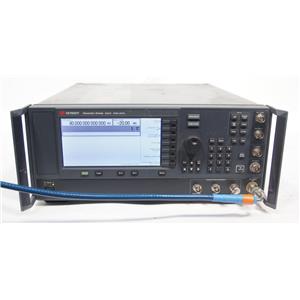

Up for sale is a used Agilent/ Keysight E8257N (E8257D) 40GHz PSG Sweep Signal Generator.

It passes all of its self tests and is in good working condition.

Options Installed:
007 Ramp Sweep
1E1 Mechanical Attenuator
540 40GHz Frequency
UNT AM/FM/Phase Modulation and LF Output
UNW High-Performance Pulse Modulation
U04 Core FW Enhancement

Original Manufacturer Description:

The Keysight E8257N is a fully-synthesized signal generator with high output power, low phase noise, and optional ramp sweep capability. Specifications apply over a 0 to 50 °C range, unless otherwise stated, and apply after a 45 minute warm-up time. Supplemental characteristics, denoted as typical, nominal, or measured, provide additional (non-warranted) information at 25 °C, which may be useful in the application of the product.

  • Frequency Range of 10MHz to 40GHz standard
  • 0.001Hz frequency resolution
  • Standard RF Level from -105dBm to +10 @ 18GHz and +7 at 40GHz
  • AM, FM, pulse, and phase modulation capabilities
  • US Navy edition
