Details

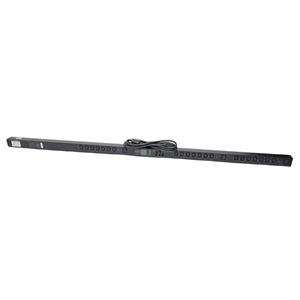

APC AP8959NA3 Power Distribution PDU 2G Switched ZeroU 208V-230V C13 C19 L6-20P
Item is Used with Normal Wear and Tear, Tested and Working.
Main
Item is Used with Normal Wear and Tear, Tested and Working.
Main
- Main Input Voltage: 200 V, 208 V, 230 V
- Output voltage: 208 V
- PDU Type: Switched
- Input Connection Type: NEMA L6-20P
- Number of rack unit: 0U
- Number of cables: 1
- Cable length: 9.81 ft (2.99 m)
- Input Frequency: 50/60 Hz
- Line Rated Current: 16 A
- permissible voltage: 200…240 V
- Input current limits: 20 A
- Load Capacity: 3300 VA
- Maximum Total Current Draw per Phase: 16 A
- Number of power socket outlets: 21 IEC 60320 C13, 3 IEC 60320 C19
- Protection Type: Without circuit breaker
- Color: Black
- Height: 70.5 in (1791 mm)
- Width: 2.2 in (56 mm)
- Depth: 1.8 in (46 mm)
- Net Weight: 12.63 lb(US) (5.73 kg)
- Mounting Location: Side
- Mounting preference: No preference
- Mounting Mode: Not rack-mountable
- USB compatible: No
- Mounting position: Vertical
- Product Certifications: cUL Listed, PSE, UL Listed, VCCI Class A, VDE
- Standards: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 class A, ICES-003
- Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
- Relative Humidity: 5…95 %
- Operating altitude: 0...10000 ft
- Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
- Storage Relative Humidity: 5…95 %
- Storage altitude: 0…50000 ft (0…15240 m)
Specifications
| Brand | APC |
|---|---|
| MPN | AP8959NA3 |
| Condition Description | An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent working condition. This item may have cosmetic blemishes and may or may not be in original packaging. See the listing description for full details. |
