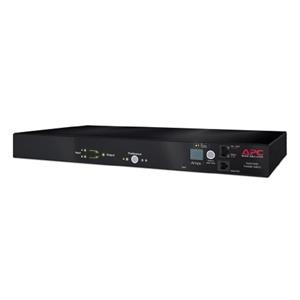

APC AP7750A Rack ATS 1440VA 120V 15A 5-15P (10)5-15R Automatic Transfer Switches

APC AP7750A Rack ATS 1440VA 120V 15A 5-15P (10)5-15R Automatic Transfer Switches

$190.00

SKU: MR_AP7750A-REF

Availability: 2 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

APC AP7750A Rack ATS 1440VA 120V 15A 5-15P (10)5-15R Automatic Transfer Switches

Condition: Used, Tested Under Load, Comes With No Other Accessories (No Serial Cable or Manuals)

This ATS is Reset to Factory Default . The Log In and Password is: apc / apc

Main

Main Input Voltage: 100 V, 120 V
Output voltage: 100 V, 120 V
Input Connection Type: NEMA 5-15P
Number of rack unit: 1U
Number of cables: 2
Cable length: 8 ft (2.4 m)
Provided Equipment: Rack Mounting brackets
Input Frequency: 50/60 Hz
Line Rated Current: 12 A
permissible voltage: 100…125 V
Input current limits: 15 A
Load Capacity: 1440 VA
Max current draw: 15 A
Number of power socket outlets: 10 NEMA 5-15R

Complementary

Color: Black
Height: 1.7 in (4.4 cm)
Width: 17.008 in (43.2 cm)
Depth: 9.3 in (23.6 cm)
Net Weight: 10.4 lb(US) (4.7 kg)
Mounting Location: Front
Mounting preference: No preference
Mounting Mode: Rack-mounted

Environmental

Product Certifications: PSE, TÜV-C, TÜV-NURTL, VCCI Class A
Standards: FCC Part 15 class A, ICES-003
Ambient Air Temperature for Operation: 23…113 °F (-5…45 °C)
Relative Humidity: 0…95 %
Operating altitude: 0...10000 ft
Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
Storage Relative Humidity: 0…95 %
Storage altitude: 0…50000 ft (0…15240 m)
