Details
Item is Used with Normal Wear and Tear, Tested and Working.
Overview

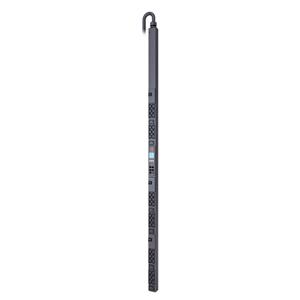

Presentation: APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13, (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.
Main
- Color: Black
- Product or Component Type: PDU
- PDU Type: Metered
- Cord length: 6 ft (1.8 m)
- Number of cables: 1
- Provided Equipment: Installation guide, Rack Mounting brackets, Serial configuration cable, Safety guide
- Input Voltage: 208 V 3 phase
- Height: 72.01 in (182.9 cm)
- Width: 2.20 in (5.6 cm)
- Output Voltage: 208 V
- Depth: 2.01 in (5.1 cm)
- Net Weight: 18.78 lb(US) (8.52 kg)
- Mounting Location: Side
- Mounting preference: No preference
- Mounting Mode: Rack-mounted
- Rack units: 0U
- Mounting position: Vertical
- Max line current: 35 A
- Input current limits: 35 A
- Load Capacity: 10000 VA
- Input Frequency: 50/60 Hz
- Number of input connectors: 1 CS8365
- Outlet type and quantity: 36 IEC 60320 C13, 6 IEC 60320 C19
- Product Certifications: cUL Listed, UL Listed, VCCI Class A
- Standards: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 class A, ICES-003
- Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
- Relative Humidity: 5…95 %
- Operating altitude: 0...10000 ft
- Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
- Storage Relative Humidity: 5…95 %
- Storage altitude: 0…50000 ft (0.0000000000…15240.0000000000 m)
Specifications
| Brand | APC |
|---|---|
| Type | Power Distribution Panel |
| Voltage Compatibility | 10000 VA |
| Features | Rack Mountable |
| Model | APC AP8868 |
| MPN | AP8868 |
| Number of Outlets | 42 AC |
| Condition Description | An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent working condition. This item may have cosmetic blemishes and may or may not be in original packaging. See the listing description for full details. |
