APC SMX1500RM2U Smart-UPS Power Backup LCD 1500VA 1000W 120V Rack mountable REF

Load tested, warranty, fast shipping

Quick Overview

Contact : Miro -  : +1-410-662-6380 ext117 or eMail

Warranty: 30Day Exchange/Money Back (1Year Warranty On Internal Batteries)

$290.00
SKU: MR_SMX1500RM2U-REF

Availability: 10 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

APC SMX1500RM2U Smart-UPS Power Backup LCD 1500VA 1000W 120V Rack/Tower

Item is Refurbished By Seller,  Tested under load.
Brand New Batteries(1Year Warranty on Batteries and 30Day on UPS)

Package Contents

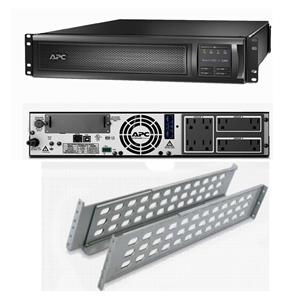

APC Smart-UPS SMX1500RM2U, Rack-Mount support Rails and Rack Ears
Free Download from APC Site: PowerChute Business Edition software & Documentation

Optional Add-On can be purchased from our eBay store External Battery Pack or Network Management cards
☻ APC 48V External Battery pack: SMX48RMBP2U
☻ APC Network Management Cards: AP9630 & AP9631


Output

Output power capacity
1.2kWatts / 1.44kVA
Max Configurable Power (Watts)
1.2kWatts / 1.44kVA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) NEMA 5-15R (Battery Backup)

Input

Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
8ft (2.44meters)
Input voltage range for main operations
82 - 143V
Input voltage adjustable range for mains operation
75 - 154V
Number of Power Cords
1
Maximum Short Circuit Withstand (Icw)
1000.0kAmps
Maximum Input Current
12.0A

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
311

Communications & Management

Interface Port(s)
SmartSlot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
645Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
3.5inches (89MM, 8.9CM)
Maximum Width
17.0inches (432MM, 43.2CM)
Maximum Depth
19.3inches (490MM, 49.0CM)
Rack Height
2U
Net Weight
54.6lbs. (24.82KG)
Shipping weight
66.0lbs. (30.0KG)
Shipping Height
9.7inches (246MM, 24.6CM)
Shipping Width
23.2inches (589MM, 58.9CM)
Shipping Depth
24.4inches (620MM, 62.0CM)
Color
Black

Specifications

Condition Seller refurbished
Brand APC
MPN Does not apply
Type Enterprise/Data Center UPS
Model SMX1500RM2U
Max. Voltage-Amps 1500 VA
Voltage Compatibility 120 V
Max. Wattage 1200W
Outlets 8
Condition Description TESTED UNDER LOAD, WARRANTY, PRO PACKAGING
