APC SRT10KRMXLT 10kVA 10000w 208V On-Line Network Smart-UPS Power Battery Backup

APC SRT10KRMXLT 10kVA 10000w 208V On-Line Network Smart-UPS Power Battery Backup

$10,200.00 $3,900.00

SKU: MR_SRT10KRMXLT-RNEW

Availability: 2 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

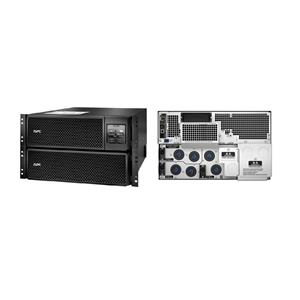

APC SRT10KRMXLT 10000VA, 10000W 208V 6U On-Line Double Conversion Rackmount Smart-UPS Network Ready

Condition: Pro Refurbished in Grage "A" Condition, New Batteries and Full Rackmount Kit.

Delivery: Will ship via Freight Carrier on one Pallet, please make sure your delivery address has no Freight delivery restrictions.

Output

Output power capacity
10.0 KWatts / 10.0 kVA
Max Configurable Power (Watts)
10.0 KWatts / 10.0 kVA
Nominal Output Voltage
208V
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections:

(2) NEMA L6-30R (Battery Backup)

(4) NEMA L6-20R (Battery Backup)

(1) Hard Wire 3-wire (2PH + G) (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
208V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3-wire (2PH + G)
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275 (half load)V

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
1.5hour(s)
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
Replacement Battery
APCRBC140
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-SRT-8kVA-RM-with-208V-to-120V-2U-Step-Down-Transformer
Runtime

View Runtime Graph

View Runtime Chart
Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
480Joules

Physical

Maximum Width
10.35 in (26.3 cm)
Maximum Height
17.0in ( 432mm , 43.2CM )
Maximum Depth
28.15in ( 715mm , 71.5CM )
Rack Height
8U
Net Weight
245.99 lb(US) (111.58 kg)
Shipping weight
279.00 lb(US) (126.55 kg)
Shipping Height
18.15 in (46.1 cm)
Shipping Width
23.62 in (60 cm)
Shipping Depth
39.37 in (100 cm)
Color
Black

Specifications

Brand	APC
Type	Enterprise/Data Center UPS
Voltage Compatibility	208 V
Maximum Power	More than 1500 W
Features	Surge Protection, Rack Mountable, AVR (Automatic Voltage Regulation)
Compatible Brand	For APC
Color	Black
MPN	SRT10KRMXLT
Number of Outlets	7
Maximum Wattage	10 kW
Maximum Input Current	20 A
Surge Energy Capacity	480 J
Item Height	10.35 in
Item Width	17.01 in
