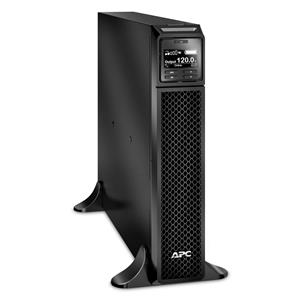

APC SRT3000XLT 3000VA 2700W 208V Double-Conversion Smart-UPS Battery Backup

$1,550.00
SKU: MR_SRT3000XLT-NEW

Availability: 5 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

APC SRT3000XLT 3000VA 208V 2U Smart-UPS SRT High density, double-conversion on-line power protection with scalable runtime



Condition: Item Is new, Never used, in Original Open APC Box with all original Accessories, we load test the UPS before shipping to make sure it's 100% functional
Warranty:  1 year warranty on the Batteries 90 Days on the UPS from Seller


Output

Output power capacity
2.7kWatts / 3.0kVA
Max Configurable Power (Watts)
2.7kWatts / 3.0kVA
Nominal Output Voltage
208V
Output Voltage Note
Configurable for 208 or 240 nominal output voltage
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(1) NEMA L6-30R (Battery Backup)
(2) NEMA L6-20R (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
208V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
NEMA L6-20P
Cord Length
10ft (3.05meters)
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275 (half load)V
Number of Power Cords
1
Other Input Voltages
240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
3hour(s)
Nominal Battery Voltage
96V
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
497
Extended Run Options

Communications & Management

Interface Port(s)
RJ-45 Serial, Smart-Slot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
340Joules
Filtering
--

Physical

Maximum Height
3.35inches (85MM, 8.5CM)
Maximum Width
17.0inches (432MM, 43.2CM)
Maximum Depth
25.0inches (635MM, 63.5CM)
Rack Height
2U
Net Weight
69.0lbs. (31.3KG)
Shipping weight
88.0lbs. (39.92KG)
Shipping Height
9.7inches (246MM, 24.6CM)
Shipping Width
23.6inches (599MM, 59.9CM)
Shipping Depth
34.3inches (871MM, 87.1CM)
Color
Black

Specifications

Brand APC
Type Enterprise/Data Center UPS
Voltage Compatibility 208 V, 240 V
Maximum Power 2700 W
Compatible Brand For APC
Features Cold Start, Surge Protection, Rack Mountable, Remote Monitoring
Color Black
Model SRT3000XLT
MPN SRT3000XLT
Number of Outlets 3
Maximum Wattage 2700 W
Item Height 17 in
