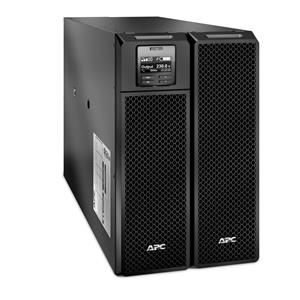

APC SRT8KXLI 8kVA 208V On-Line Double-Conversion Network Smart-UPS Power Backup

APC SRT8KXLI 8kVA 208V On-Line Double-Conversion Network Smart-UPS Power Backup

New In Open Box

$4,900.00

SKU: MR_SRT8KXLI-NOB/RNEW

Availability: 2 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

APC SRT8KXLI 8kVA 208V On-Line Double-Conversion Network Smart-UPS Power Backup

Shipping/Packaging: Item is Heavy and best way to ship is in multiple Boxes, We will Remove battery cartridges and ship it in separate box, or ship via Freight(to Commercial Address With Loading Dock).
Condition: Item Is new, Never used, in Original open APC box with all original Accessories
Warranty: 1 Year warranty on the Batteries(Brand New Batteries) 90 days on the UPS from Seller

SRT8KXLI Features

Output power capacity

8.0kWatts / 8.0kVA

Output Connections

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(4) IEC 320 C19 (Battery Backup)

(3) IEC Jumpers (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V, 400V 3PH

Input Connections

Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Max Configurable Power (Watts)

8.0kWatts / 8.0kVA

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Bypass

Internal Bypass (Automatic and Manual)

Input frequency

40 - 70 Hz (auto sensing)

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load), 173 - 476 (half load)V

Other Input Voltages

220, 240, 380, 415

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

1.5hour(s)

Nominal Battery Voltage

+/-192 V (split battery referenced to neutral)

Replacement Battery

SRT192BP2US

Expected Battery Life (years)

3 - 5

RBC Quantity

Extendable Run Time

Battery Volt-Amp-Hour Capacity

1728

Extended Run Options

APC-Smart-UPS-SRT-8000VA-230V

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

Surge energy rating

480Joules

Maximum Height

17.0inches (432MM, 43.2CM)

Maximum Width

10.35inches (263MM, 26.3CM)

Maximum Depth

28.15inches (715MM, 71.5CM)

Net Weight

246.0lbs. (111.82KG)

Shipping weight

279.0lbs. (126.82KG)

Shipping Height

18.15inches (461MM, 46.1CM)

Shipping Width

23.62inches (600MM, 60.0CM)

Shipping Depth

39.37inches (1000MM, 100.0CM)

Color

Black
