APC SUA3000XL 3000VA 2700W 120V 3kW Battery Power Backup Tower 5U New Batteries

APC SUA3000XL 3000VA 2700W 120V 3kW Battery Power Backup Tower 5U New Batteries

$750.00

SKU: MR_SUA3000XL-REF/RNEW

Availability: 1 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

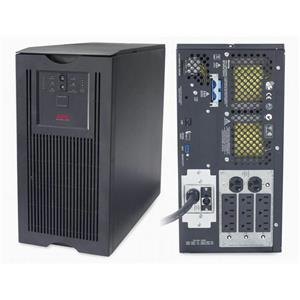

APC Smart-UPS SUA3000XL 3000VA 2700W 120V Tower Battery Power Backup

Condition: Like New Condition, Load Tested, Brand new internal Batteries
Warranty: 1 Year warranty on the batteries and 30 days on the UPS
Shipping: Pro Packaging in 2 Boxes

Output

Output power capacity
2.7 KWatts / 3.0 kVA
Max Configurable Power (Watts)
2.7 KWatts / 3.0 kVA
Nominal Output Voltage
120V
Efficiency at Full Load
96.0 %
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections

(9) NEMA 5-15R & (2) NEMA 5-20R
Transfer Time
2ms typical

Input

Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA L5-30P
Cord Length
8ft ( 2.44meters )
Input voltage range for main operations
82 - 144V
Input voltage adjustable range for mains operation
75 - 154V
Number of Power Cords
1
Efficiency at Full Load
96.0 %

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
RBC55
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-XL-3000VA-120V-Tower-Rack-Convertible
Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)
DB-9 RS-232 , Smart-Slot
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
480Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
17.5inches ( 444mm , 44.4CM )
Maximum Width
8.7inches ( 221mm , 22.1CM )
Maximum Depth
19.5inches ( 495mm , 49.5CM )
Rack Height
5U
Net Weight
140.0lbs. ( 63.64KG )
Shipping weight
182.0lbs. ( 82.73KG )
Shipping Height
22.0inches ( 559mm , 55.9CM )
Shipping Width
15.0inches ( 381mm , 38.1CM )
Shipping Depth
30.0inches ( 762mm , 76.2CM )
Color
Black

Specifications

Condition	New
Brand	APC
Type	Enterprise/Data Center UPS
Voltage Compatibility	120 V
Model	SUA3000XL
MPN	Does not apply
Max. Voltage-Amps	3000 VA
Max. Wattage	2700W
Outlets	11
