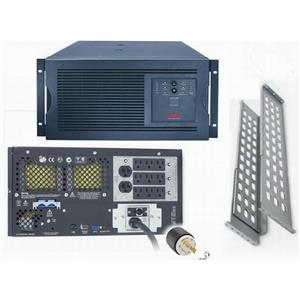

APC SUA3000XL Smart UPS 3000VA 2700W 120V Power Backup Rack mount New Battery

New Internal Batteries Warranty,
$549.00
SKU: MR_SUA3000XL-RM-REF

Availability: 35 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

APC Smart-UPS SUA3000XL 3000VA 2700W 120V Rack Mountable/Tower Battery Backup

Condition: Refurbished by seller, Load Tested, Brand new internal Batteries,
Comes With: Rack Mount Kit(Rack Rails and Ears)
Warranty:  1 Year warranty on the batteries and 30 days on the UPS
Shipping: Pro Packaging in 2 Boxes



Output

  • Output power capacity
    2.7 KWatts / 3.0 kVA
  • Max Configurable Power (Watts)
    2.7 KWatts / 3.0 kVA
  • Nominal Output Voltage
    120V
  • Efficiency at Full Load
    96.0 %
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
  • Topology
    Line Interactive
  • Waveform type
    Sine wave
  • Output Connections
    (9) NEMA 5-15R & (2) NEMA 5-20R
  • Transfer Time
    2ms typical

Input

  • Nominal Input Voltage
    120V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    NEMA L5-30P
  • Cord Length
    8ft ( 2.44meters )
  • Input voltage range for main operations
    82 - 144V
  • Input voltage adjustable range for mains operation
    75 - 154V
  • Number of Power Cords
    1
  • Efficiency at Full Load
    96.0 %

Batteries & Runtime

Communications & Management

  • Interface Port(s)
    DB-9 RS-232 , Smart-Slot
  • Control panel
    LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO)
    Yes
  • Available SmartSlot™ Interface Quantity
    1

Surge Protection and Filtering

  • Surge energy rating
    480Joules
  • Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    17.5inches ( 444mm , 44.4CM )
  • Maximum Width
    8.7inches ( 221mm , 22.1CM )
  • Maximum Depth
    19.5inches ( 495mm , 49.5CM )
  • Rack Height
    5U
  • Net Weight
    140.0lbs. ( 63.64KG )
  • Shipping weight
    182.0lbs. ( 82.73KG )
  • Shipping Height
    22.0inches ( 559mm , 55.9CM )
  • Shipping Width
    15.0inches ( 381mm , 38.1CM )
  • Shipping Depth
    30.0inches ( 762mm , 76.2CM )
  • Color
    Black

Specifications

Condition Seller refurbished
Type Enterprise/Data Center UPS
Brand APC
Model SUA3000XL
MPN Does not apply
Max. Voltage-Amps 3000 VA
Voltage Compatibility 120 V
Max. Wattage 2700W
Outlets 11
Condition Description RECONDITIONED WITH NEW BATTERIES., TESTED UNDER LOAD, WARRANTY.
