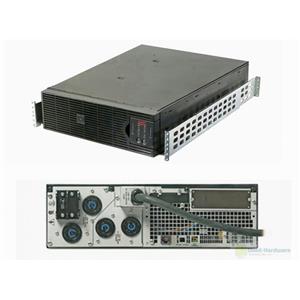

APC SURTD5000RMXLT3U On-Line Smart-UPS 5000VA 3500W 208V Battery Power Backup

New Batteries, Load tested, Warranty

$4,053.99 $1,100.00

SKU: MR_SURTD5000RMXLT3U-REF

Availability: 7 item(s)

Qty:

Enter your destination to get a shipping estimate

Details

APC SURTD5000RMXLT3U Smart-UPS On-Line Double Conversion 5000VA 3500W XL 3U 208V-240V

Included: SURTD5000RMXLT3U + AP9619 NMC Card and Full Rackmount Kit, Rack Rails and Years

Item is tested under load, New internal Batteries (1 year warranty on the Batteries and 30 days on the UPS)

Output power capacity
3.5 KWatts / 5.0 kVA
Max Configurable Power (Watts)
3.5 KWatts / 5.0 kVA
Nominal Output Voltage
208V
Output Voltage Note
Configurable for 208 or 240 nominal output voltage
Efficiency at Full Load
91.0 %
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections

(2) NEMA L6-20R (Battery Backup)

(2) NEMA L6-30R (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.5hour(s)
Replacement Battery
APCRBC140
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Runtime

View Runtime Graph

View Runtime Chart

Interface Port(s)
RJ-45 10/100 Base-T , SmartSlot
Pre-Installed SmartSlot™ Cards
AP9619
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes

Surge energy rating
555JJoules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Maximum Height
5.1inches ( 130mm , 13.0CM )
Maximum Width
17.0inches ( 432mm , 43.2CM )
Maximum Depth
26.0inches ( 660mm , 66.0CM )
Rack Height
3U
Net Weight
128.0lbs. ( 58.18KG )
Shipping weight
159.0lbs. ( 72.27KG )
Shipping Height
13.68inches ( 347mm , 34.7CM )
Shipping Width
23.73inches ( 603mm , 60.3CM )
Shipping Depth
38.6inches ( 980mm , 98.0CM )
Color
Black
