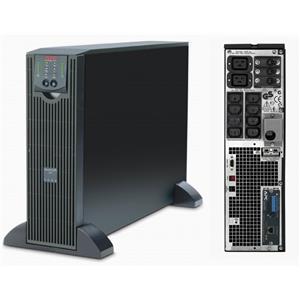

APC SURTD5000XLI On-Line Smart-UPS 5000VA 3500W 220V/240V XL 3U Power Backup NOB

$1,599.00
SKU: MR_SURTD5000XLI-NOB

Availability: 20 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

New Open Box, Unused, APC SURTD5000XLI On-Line, Double Conversion Smart-UPS 5000VA 3500W 230V Tower battery Power Backup UPS

Shipping/Packaging: Item is Heavy and best way to ship is in multiple Boxes, We will Remove battery cartridges and ship it in separate box, or ship via Freight(to Commercial Address With Loading Dock).
Condition: Item Is new, Never used, in Original open APC box with all original Accessories
Warranty:  1 year warranty on the Batteries 90 days on the UPS from Seller
Options: UPS is configured as Tower, but we can get you Rackmount kit if you interested(free, Contact Seller)


Output

Output power capacity
3.5kWatts / 5.0kVA
Max Configurable Power (Watts)
3.5kWatts / 5.0kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
92.0 %
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
(4) IEC Jumpers (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Hard Wire 3-wire
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280 (half load)V
Efficiency at Full Load
92.0 %
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.5hour(s)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
960
Extended Run Options

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot
Pre-Installed SmartSlot™ Cards
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
555JJoules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
17.0inches (432MM, 43.2CM)
Maximum Width
5.1inches (130MM, 13.0CM)
Maximum Depth
26.0inches (660MM, 66.0CM)
Rack Height
3U
Net Weight
120.0lbs. (54.43KG)
Shipping weight
140.0lbs. (63.64KG)
Shipping Height
13.68inches (347MM, 34.7CM)
Shipping Width
23.73inches (603MM, 60.3CM)
Shipping Depth
38.6inches (980MM, 98.0CM)
Color
Black
