Boonton 1121-11-20 Audio Analyzer 10 Hz to 200 kHz

SKU: AR_Boonton 1121

Availability: 1 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

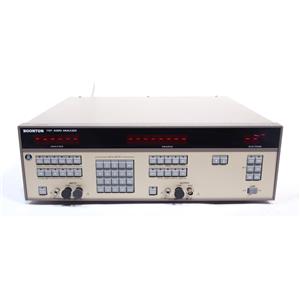

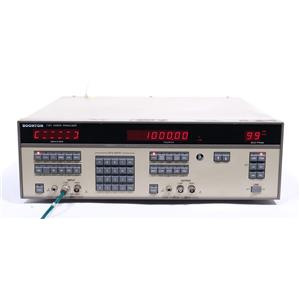

Up for sale is a used Boonton 1121-11-20 Audio Analyzer 10 Hz to 200 kHz.

It has been power on tested.

Original Manufacturer Description:

The Boonton 1121 Audio Analyzer provides fast and very accurate measurements including frequency, AC or DC level, distortion, SINAD and signal-to-noise ratio. It also includes an audio source providing low distortion signals over wide frequencies and level ranges.

The 1121 incorporates selectable output impedance of 50, 150 and 600 ohms, 16 volt RMS output, additional 0.3 mV full scale measurement range, and quasi-peak detection. The 1121 Audio Analyzer also tunes and manages auto-ranging automatically for maximum accuracy and resolution. Distortion, frequency response, AC and DC voltage measurements require only one single keystroke. The instrument is ideally suited for stimulus response applications because of an on-board low distortion audio source. Internal control of the source and analyzer allows for swept measurements.

For the accurate measurement of complex waveforms and noise, the audio analyzer uses true RMS average or quasi-peak detection. Accurate distortion measurements can be made to -90 dB (0.003%) between 20 Hz and 20 kHz. Over the same frequency range, flatness measurements are possible to 0.05 dB (0.5%). The audio analyzer precision reciprocal counter gives fast and accurate characterization of audio frequencies.
  • Frequency Range from 10 Hz to 200 kHz
  • Measurement Level from 300 µV to 300 V (Full Scale)
  • Low-Distortion Audio Source for Testing Systems, Amplifiers, Receivers and Components
  • Instant Recall of up to 99 Complete Front Panel Setups
