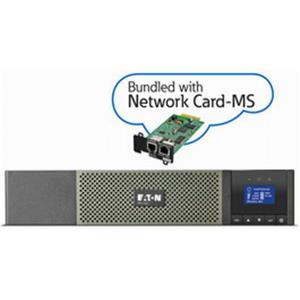

Eaton 5PX1500RTn LCD 1500VA 1440W 120V Rackmount 2U Battery Power Backup
Network Bundle, Comes with Network Card-MS
Condition: Item is Refurbished by seller, Load Tested, New Internal Batteries (1Year Warranty on Batteries)
Warranty: 1 year warranty on the Batteries 30Days on the UPS from Seller
Options: UPS is configured as Rack-mountable and Comes with Full Rail/Ears kit
| General |
| Topology |
Line-Interactive High Frequency (Pure Sine wave, Buck + Boost) |
| Configuration |
Rack/Tower |
| Catalog Number |
5PX1500RTN |
| Part Number |
5PX1500RTN |
| Color |
Black |
| Rating (VA/Watts) |
1440/1440 |
| |
|
| Diagnostics |
Full system self-test at power up |
| UPS Bypass |
EHBPL1500R-PDU1U (optional) |
| Dimensions (H x W x D, inches) |
3.4 x 17.4 x 20.6 |
| Dimensions (H x W x D, mm) |
86 x 441 x 522 |
| Weight (kg) |
29 |
| Weight (lbs) |
65 |
| Warranty |
1 years on batteries |
| Rail Kit Included |
Tower stands and 4-post rail kit included |
Contents (Ships with the following items) |
5PX1500RTN Four-post rail kit
|
|
up to 98%
|
|
| Electrical Input |
| Connection |
(1) NEMA 5-15P

|
| Input Cord |
8 ft |
| Input Voltage Range |
89–151 Vac (adjustable to 70–153 Vac) |
| Nominal Voltage |
120 Vac (adjustable to100/120/127 Vac) |
| Frequency |
50/60 Hz (auto-sensing) |
| Frequency Range |
47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Input Power Factor |
1 |
|
| Electrical Output |
| Output Receptacles |
(8) NEMA 5-15R

|
| On Utility Voltage Regulation |
102–132 Vac |
| On Battery Voltage Regulation |
-10%, +6% of nominal |
| Output Frequency |
50/60 Hz ±0.1 % (autosensing) |
| Transfer Time |
1–4 ms typical |
| Load Segments |
Group 1: (2) 5-15R outlets Group 2: (2) 5-15R outlets |
