Details
EATON OSUL06D-C4-K-L Occupancy Motion Sensor with Dimmer, Single Pole & 3-Way, in White Ivory Black Colors
Product Wiring and brochure in pdf
Item is New.
Product Wiring and brochure in pdf
Item is New.

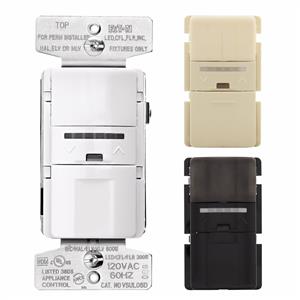

- C4 Color Change Kit: White, Ivory, Black.
- 600W; 120V.
- Full range preset dimming control provided with horizontal DIM/BRIGHT bar.
- Digital circuitry provides aesthetically pleasing soft ON/fade OFF that extends bulb life.
- Preset and light level change is easily shown with horizontal row of green LEDs.
- Works with popular load types: halogen, incandescent, and magnetic low-voltage, LED.
- Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection.
- LED serves as air-gap switch disconnecting power from load, forcing an OFF condition.
- Push pad design provides minimal travel and crisp actuation.
- Replaces standard light switch.
- Provides 180-degree field of view and 1000 square feet of major motion coverage.
- Selectable time delay of 5 seconds (test), 5 minutes, 10 minutes and 20 minutes for lights to remain ON after room is vacated.
- Reverse mode allows light to stay OFF in a room where motion is detected.
- Provides a selectable ambient light override preventing lights form switching ON when there is acceptable natural light.
- Allows for toggling between Auto ON/Auto OFF or Manual ON/Auto OFF mode with a simple press and hold of a switch.
- Provides for bypass feature to allow the sensor to perform as traditional switch (Manual ON/Manual OFF).
- Electrostatic discharge protection.
- No leakage to load in OFF mode.
- Neutral required for installation of device.
GENERAL SPECIFICATIONS
PRODUCT NAME: Eaton occupancy sensor and dimmer
CATALOG NUMBER: OSUL06D-C4-K-L
UPC: 032664755033
PRODUCT LENGTH/DEPTH: 2.688 in
PRODUCT HEIGHT: 6.125 in
PRODUCT WIDTH: 4.125 in
PRODUCT WEIGHT: .378 lb
PRODUCT SPECIFICATIONS
SPECIAL FEATURES: Motion sensor and dimmer
PHASE: Single-phase
TERMINATION STYLE: Back and side wire
LOAD TYPE: 300 W for LED, CFL 600 W for INC, HAL, FLR, MLV, ELV
LOAD TYPE: 300 W for LED, CFL 600 W for INC, HAL, FLR, MLV, ELV
GRADE: Residential
MATERIAL: Polycarbonate
COUNTRY OF ORIGIN: CH
NUMBER OF POLES: Single-pole
NUMBER OF GANGS: 2 3 1
TYPE: Sensor Dimmer
SENSOR TYPE: Occupancy
STYLE TYPE: Decorator
ENVIRONMENTAL CONDITIONS: Dry
FREQUENCY RATING: 60 Hz
CONNECTION TYPE: Back Side
VOLTAGE RATING: 120 V
Specifications
Condition Description | An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent working condition. This item may have cosmetic blemishes and may or may not be in original packaging. See the listing description for full details. |
---|
