Details

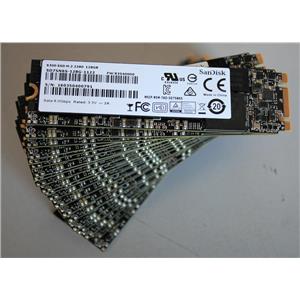

Lot of 20pcs tested removed from working notebooks SanDisk X300 M.2 M.2 SATA SSD Hard Drives 128GB
SD7SN6S-128G
SD7SN6S-128G
Capacity | 128GB |
---|---|
Form Factor | M.2 2280 |
Interface | SATA III (6 Gb/s) backward compatible to SATA II (3 Gb/s) and SATA I (1.5 Gb/s) |
Performance | |
Seq. Read up to (MB/s) | 520 |
Seq. Write up to (MB/s) | 415 |
Random Read up to (IOPS) | 73K/s |
Random Write up to (IOPS) | 40K |
Endurance (TBW) | up to 72 |
Power (Average) | |
Active Power (mW) | 95 |
Max Read Operating (mW) | 2,300 |
Max Write Operating (mW) | 2,950 |
Slumber (mW) | 70 |
DEVSLP (mW) | <7 |
MTTF | Up to 1,752,000 hours |
Product Dimensions (mm) | 2.23/22.00/80.0 |
Product Dimensions (in) | 0.0878/0.8661/3.1496 |
Weight (g/lb) | 8/0.0176 |
Environmental | |
Operating Temperature | 0°C to 70°C |
Non-Operating Temperature Range | -55°C to 85°C |
Operating Vibration | 50gRMS, 10 - 2000 Hz |
Non-Operating Vibration | 4.9 gRMS, 7 - 800 Hz |
Shock | 1,500 G @0.5 msec half sine |
Certifications (g/lb) | FCC, UL, TUV, KC, BSMI, VCCI |
