North Atlantic 2251 Phase Angle Voltmeter

North Atlantic 2251 Phase Angle Voltmeter

$3,250.00

SKU: AR_North Atlantic 2251

Availability: 1 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

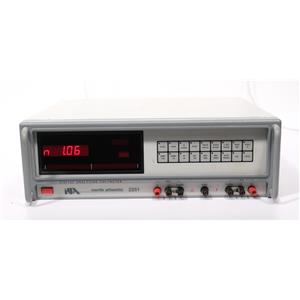

Up for sale is a used North Atlantic 2251 Phase Angle Voltmeter.

It has been power on tested only.

Original Manufacturer Description:

The North Atlantic 2251 Phase Angle Voltmeter, also known as a Digital Analyzing Voltmeter is one of the most versatile AC measurement tools in the market. The North Atlantic 2251 Meter employs a microprocessor-based design that combines many of the capabilities of today's network / waveform analyzers in a digital voltmeter configuration.

One touch makes highly accurate ratio measurements in both phase-sensitive and voltage modes; measures percent, Total Harmonic Distortion and the magnitude and phase of selected harmonic; computes the percent deviation of a signal from a selected nominal value, plus more. The magnitude of the signal can be displayed in db (20 log 10) relative to either the reference input or a selected value.

Features of the North Atlantic 2251 Phase Angle Voltmeter include:

The instrument is exceptionally “user friendly”. Unlike menu driven Instruments, by simply pressing individual switches on the front panel, you can access a wide number of single touch functions, such as:

Total, Fundamental, In-phase and Quadrature voltage and Phase Angle measurements
Reference phase offset from the Signal by up to 360º
Highly accurate Ratio measurements in both phase-sensitive and voltage modes
Measurement of Total Harmonic Distortion and magnitude and phase of a selected harmonic
Computation of the percent deviation of a signal from a selected Nominal value
Display of magnitude in db relative to either the Reference input or a selected value
Reference Frequency & Amplitude Measurement
Individual Voltage Ranges & Full Autorange
Local & Remote IEEE, GPIB Programming
