Details
It is in good working condition and appears to be unused.
The HDD has been upgraded to a SSD.
Original Manufacturer Description:

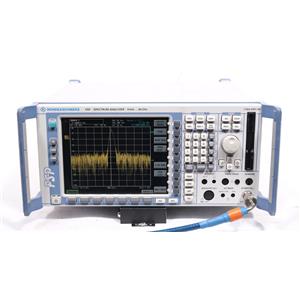

The Rohde & Schwarz FSP40 Spectrum Analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Rohde & Schwarz, Inc. FSP40. The CRT displays received signal strength (y-axis) against frequency (x-axis).
Key specifications of the Rohde & Schwarz FSP40 Spectrum Analyzer include:
-
Frequency range 9 kHz to 3GHz, 7 GHz, 13 GHz, 30 GHz and 40 GHz
-
Resolution bandwidth 1 Hz to 10 MHz
-
Displayed average noise level -155 dBm (1 Hz)
-
Phase noise -113 dB (1 Hz) at 10 kHz
-
Additional filters:
-
Channel filters from 100 Hz to 5 MHz and RRC filters
-
FFT filters from 1Hz to 30 kHz
-
EMI bandwidths and quasi-peak detector
-
Measurement functions for TOI, MC ACP(R), OBW, CCDF, APD, etc
-
Measurement applications for cellular standards and general purpose, e.g. phase noise, noise figure, etc.
-
Features of the R&S FSP40 Spectrum Analyzer include:
- Full choice of detectors
- Max, Min-, Auto-Peak, Sample, RMS, Average, Quasi-Peak
- CP/ACP/Fast ACP measurement functions with a host of predefined standards
- Multi Carrier ACP measurement with independent inter carrier spacing support
- ACP/MCAP with up to 12 adjacent channels and max hold power function
- Automatic test routines for measuring TOI, OBW, phase noise, and ACP®, AM modulation depth
- Harmonic distortion measurement
- CCDF & APD function (y-unit % possible)
- Editable limit lines including PASS/FAIL indication
-
