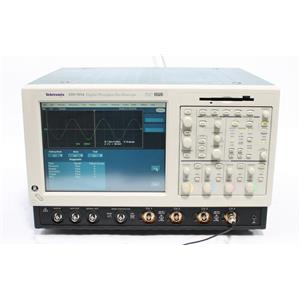

Tektronix TDS7054 4CH 500MHz 5GSa/s DPO Digital Phosphor Oscilloscope SSD

SKU: AR_Tektronix 7054

Availability: 1 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate


Up for sale is a used Tektronix DPO 7054 4CH 500MHz 5GSa/s Digital Phosphor Oscilloscope.

All 4 channels have been tested and it passes its instrument self tests and self calibration check.

It has been updated with a SSD.

Original Manufacturer Description:

TDS7000 Series digital phosphor oscilloscopes provide the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing and debugging sophisticated electronic designs. The family features exceptional signal acquisition and analysis, operational simplicity and complete connectivity to your design environment and third party analysis software. The intuitive user interface, developed after months of customer research, was pioneered in the TDS7000 Series and is quickly becoming an industry standard.

Down to 100 ps Rise Time
4 GHz, 2.5 GHz, 1.5 GHz, 1 GHz and 500 MHz Bandwidth Models
Up to 20 GS/s Real-time Sample Rate Up to 32 Megasamples Memory Depth
>400,000 Wfms/second Maximum Waveform Capture Rate
Exceptional Delta-time Accuracy for High-confidence in Critical Timing Measurements
Communications Mask Testing Up to 2.5 Gbps Rates
Clock Recovery from Serial Data Streams
32-Bit Serial Trigger for Isolation of Pattern-dependent Effects
10 MHz Time base Reference Input for Enhanced Accuracy and Repeatability
MultiView Zoom for Quick Navigation of Long Records
Control via Classic Direct Controls, Touch-sensitive Color Display or Mouse Navigation
Open Microsoft Windows Environment
