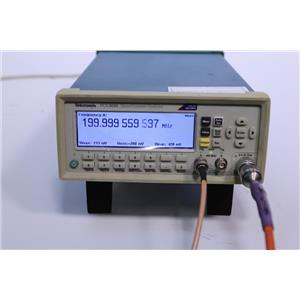

Tektronix FCA 3020 timer counter analyzer 20 GHz opt 14B

Tektronix FCA 3020 timer counter analyzer 20 GHz opt 14B

$6,500.00

SKU: AR_TEK_FCA3020

Availability: 1 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

used Tektronix FCA 3020 timer counter analyzer 20 GHz opt 14B. 3 inputs tested; unit could use a calibration.

100-240v 50-400 Hz mains - can be used in aircraft.

manufacturer's original description below, it may list options not available in one offered here, for reference only.

Features & Benefits

Key Performance Specifications

300 MHz, 3 GHz, 20 GHz Models
300-400 MHz in Manual Trigger Mode
Up to 3 Input Channels
50 ps (FCA3100 Series) or 100 ps (FCA3000 Series) Single-shot Time Resolution
12 Digit/s Frequency Resolution
0.001° Phase Resolution
3 mV or better Voltage Resolution
Optional 5×10^–8 High-stability Oven Time Base

Measurement Throughput

250k Sample/s Data Transfer Rate to Internal Memory (Up to 3.75M samples stored)
Up to 15k Sample/s Data Transfer Rate over USB/GPIB Bus (Block mode)
Up to 650 Individually Triggered Measurements/s

Available Functions and Features

Automated Measurements: Frequency, Period, Ratio, Time Interval, Time Interval Error, Pulse Width, Rise/Fall Time, Phase Angle, Duty Cycle, Maximum Voltage, Minimum Voltage, Peak-to-Peak Voltage
Totalize Measurement (FCA3100 Series)
Multi-parameter Display
Trend Plot Mode
Measurement Statistics Mode
Histogram Mode
Allan Deviation
Zero Dead-time Frequency/Period Measurements
Continuous Data Streaming over USB/GPIB Bus during Measurement (FCA3100 Series)
Programmable Pulse Output from 0.5 Hz to 50 MHz

Connectivity

Optional Rear-panel Inputs
USB Device and GPIB Ports on Rear Panel for Quick PC Connectivity
GPIB Interface Supports Full SCPI-compatible Programmability and offers an Emulation Mode for Plug-and-Play Replacement in Existing ATE Systems
External Arming Input
10 MHz Reference Oscillator Output
Includes National Instrument's LabVIEW SignalExpress™ TE Limited Edition Software for Connecting Your Bench
Optional TimeView™ Software Available for Modulation Domain Analysis
