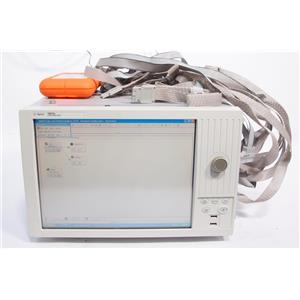

Agilent 16823A 102-Channel Portable Logic Analyzer

$4,400.00
SKU: AR_Agilent 16823A

Availability: 1 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

Up for sale is a used Agilent 16823A 102-Channel Portable Logic Analyzer.

It passes its full self tests. No Licenses installed.


Original Manufacturer Description:

The 16800 Series portable logic analyzers deliver an exclusive combination of logic analysis, pattern generation, application software and innovative probing...all at a price that will fit your budget.

Logic Analyzer Configuration

  • 15-inch (38.1 cm) color display with touch screen available
  • 102-channel portable logic analyzer with up to 32 M acquisition memory depth
  • Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
  • 48-channel pattern generator with up to 300 MVector/s speed and 16 M vector depth

Timing Analysis (Asynchronous Sampling)

  • 4 GHz (250 ps) timing zoom with 64 K memory
  • 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
  • 500 MHz transitional timing

State Analysis (Synchronous Sampling)

  • State clock rates up to 450 MHz
  • Data rates: up to 500 Mb/s
  • Automated threshold/sample position setup for accurate measurements on high-speed buses
  • Simultaneous eye diagrams on all channels identify problem signals quickly

Configuration Considerations

  • Selectable memory depths: 1 M, 4 M, 16 M, 32 M
  • Compatible with 40-pin logic analyzer probes. Probes are ordered separately. Keysight’s Probe Recommendations
  • Pattern Generator clock and data pods are ordered separately. Pattern Generator Pods
