Agilent N5183A 20GHz MXG RF Analog Signal Generator OPT 006 1E1 1ER 520 UNZ

Agilent N5183A 20GHz MXG RF Analog Signal Generator OPT 006 1E1 1ER 520 UNZ

$23,000.00

SKU: AR_Agilent N5183A E

Availability: 1 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

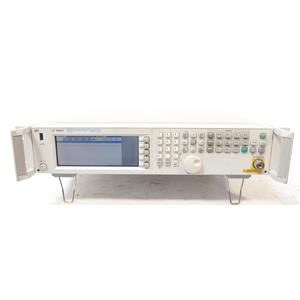

Up for sale is a used Agilent N5183A 100kHz to 20GHz MXG RF Analog Signal Generator.

It passes all of its self tests and the output has been tested.

It might require factory calibration due to an error seen in the 2nd picture.

Options Installed:
006: Instrument security
1E1: Mechanical Attenuator
1ER: Flexible Reference Output
520: 20 GHz frequency range
UNZ: Fast Switching

Original Manufacturer Description:

The Keysight N5183A MXG Microwave Analog Signal Generator delivers the performance needed for broadband component manufacturing up to 40 GHz. This instrument provides = 900 µs frequency switching (=600 µs typically) to improve test times for applications like antenna test and manufacturing, with a small size (2RU) to better utilize rack space. Excellent power and level accuracy make the Keysight N5183A a reliable stimulus for driving high power devices.

Signal Characteristics:

100 kHz to 20, 31.8 or 40 GHz
+18 dBm at 20 GHz output power
= 900 µs frequency switching speeds
= -98 dBc/Hz typical phase noise at 20 kHz offset

Modulation and Sweep:

AM, FM, FM, and pulse modulation
< 10 ns pulse rise/fall time and 20 ns pulse widths
Digital and step sweep

Automation and Communcation Interface:

100BaseT LAN, USB 2.0 and GPIB
LXI class-B compliant
SCPI and IVI-COM drivers
Backward compatible with PSG, 8340, 8360 and 8370 Series signal generators
