Details

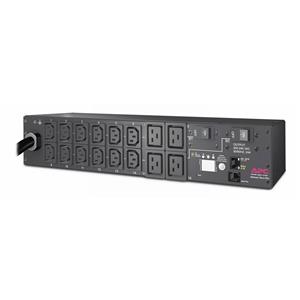

APC AP7811B Metered NetShelter Rack PDU 2U 5.0kW 208V 30A (12) C13 (4) C19
Item is Used with Normal Wear and Tear, Tested and Working.
Description
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Specifications
Main
Item is Used with Normal Wear and Tear, Tested and Working.
Description
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Specifications
Main
- Product or Component Type: PDU
- PDU Type: Metered
- Cord length: 12 ft (3.7 m)
- Number of cables: 1
- Provided Equipment: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual
- Input Voltage: 200 V,208 V, 230 V
- Height: 3.46 in (8.8 cm)
- Width: 17.48 in (44.4 cm)
- Output Voltage: 208 V
- Depth: 4.41 in (11.2 cm)
- Net Weight: 7.41 lb. (US) (3.36 kg)
- Mounting Location: Front, Rear
- Mounting preference: No preference
- Input Plug Type: NEMA L6-30P
- Mounting Mode: Rack-mounted
- Rack units: 2U
- Mounting position: Horizontal
- Line Rated Current: 24 A
- Input current limits: 30 A
- Load Capacity: 4992 VA
- Input Frequency: 50/60 Hz
- Outlet type and quantity: 12 IEC 60320 C13, 4 IEC 60320 C19
- Product Certifications: cUL Listed, CSA, PSE, UL Listed
- Standards: FCC Part 15 class A, ICES-003, UL 60950
- Ambient Air Temperature for Operation: 23…113 °F (-5…45 °C)
- Relative Humidity: 5…95 %
- Operating altitude: 0...10000 ft
- Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
- Storage Relative Humidity: 5…95 %
- Storage altitude: 0…50000 ft (0.0000000000…15240.0000000000 m)
Specifications
Brand | APC |
---|---|
Type | Power Distribution Panel |
Voltage Compatibility | 208 V |
Features | Fused, Rack Mountable, Remote Monitoring |
Color | Black |
Compatible Brand | Universal, For APC |
Maximum Power | 1200 W |
Model | AP7811B |
MPN | AP7811B |
Number of Outlets | 16 |
Maximum Input Current | 30 A |
Condition Description | An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent working condition. This item may have cosmetic blemishes and may or may not be in original packaging. See the listing description for full details. |
