APC AP8941 Switched Rack PDU 2G Zero-U 30A 208V L6-30 C13 C19 Power Distribution

Load Tested, Upgraded Firmware, Reset to Default

Quick Overview

Contact : Miro -  : +1-410-662-6380 ext117 or eMail

Warranty: 30 Days Exchange/Money Back

$1,075.00 $300.00
SKU: MR_AP8941-REF

Availability: 5 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

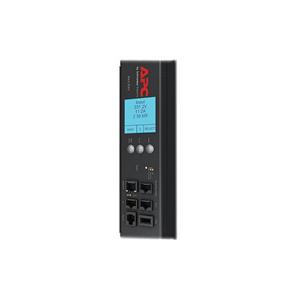

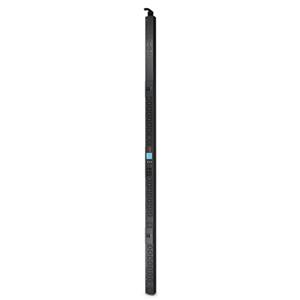

APC AP8941 Rack PDU 2G Switched Zero-U 30A 208V L6-30P (3)C19 & (21)C13

Condition: Used, Refurbished By Seller, Comes With No Other Accessories(No Serial Cable or Manuals)
This PDU is Tested and Reset to Factory Default . The Log In and Password is: apc / apc
Upgraded Firmware to latest
Version.

Switched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.


  • Network Management Capabilities - Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
  • Remote Individual Outlet Control - Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
  • Alarm Thresholds - Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Technical Specifications

Output
Nominal Output Voltage 200V, 208V
Maximum Total Current Draw per Phase 30A
Output Connections

(21) IEC 320 C13




(3) IEC 320 C19



Overload Protection Yes
Input
Nominal Input Voltage 200V, 208V, 230V
Input Frequency 50/60 Hz
Regulatory Derated Input Current (North America) 24A
Input Connections NEMA L6-30P

Cord Length 10 feet (3.05 meters)
Number of Power Cords 1
Maximum Line Current per phase
30A
Maximum Input Current per phase
30A
Physical
Net Weight 16.80 lbs. (7.64 kg)
Maximum Height 72.00 inches (1829 mm)
Maximum Width
2.20 inches (56 mm)
Maximum Depth
1.82 inches (46 mm)
