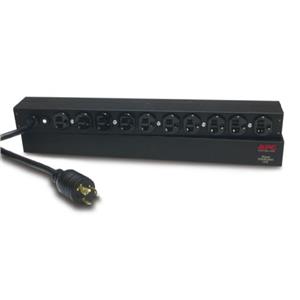

APC AP9564 Basic 1U PDU 120V 20A 1920 VA (10) 5-20R Power Distribution Unit L5-20P
Item is Used with Normal Wear and Tear, Tested and Working.
Main
Item is Used with Normal Wear and Tear, Tested and Working.
Main
- Color: Black
- Product or Component Type: PDU
- PDU Type: Basic
- Cord length: 12 ft (3.7 m)
- Number of cables: 1
- Provided Equipment: Rack Mounting brackets
- Input Voltage: 100 V, 120 V
- Height: 1.73 in (4.4 cm)
- Width: 17.60 in (44.7 cm)
- Output Voltage: 120 V
- Depth: 2.24 in (5.7 cm)
- Net Weight: 5.5 lb(US) (2.5 kg)
- Mounting Location: Front, Rear
- Mounting preference: No preference
- Input Plug Type: NEMA L5-20P
- Mounting Mode: Rack-mounted
- Rack units: 1U
- Mounting position: Horizontal
- Line Rated Current: 16 A
- Input current limits: 20 A
- Load Capacity: 1920 VA
- Input Frequency: 50/60 Hz
- Outlet type and quantity: 10 NEMA 5-20R
- Product Certifications: cUL Listed, UL Listed
- Ambient air temperature for operation: 23…113 °F (-5…45 °C)
- Relative Humidity: 0…95 %
- Operating altitude: 0...10000 ft
- Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
- Storage Relative Humidity: 0…95 %
- Storage altitude: 0…50000 ft (0.0000000000…15240.0000000000 m)
Specifications
Brand | APC |
---|---|
MPN | AP9564 |
Model | AP9564 |
