Details

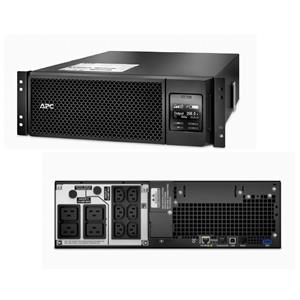

APC SRT5KRMXLI 5000VA 208V 4200W On-Line Double Conversion, Rackmount 3U Smart-UPS Network Ready
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
SRT5KRMXLI Features
Key Features
Output power capacity
4.5kWatts / 5.0kVA
Output Connections
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
Hard Wire 3 wire (1PH+N+G)
Cord Length
Output
Max Configurable Power (Watts)
4.5kWatts / 5.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Bypass
Internal Bypass (Automatic and Manual)
Input
Input frequency
40 - 70 Hz (auto sensing)
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275 (half load)V
Number of Power Cords
1
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
1.5hour(s)
Nominal Battery Voltage
192V
Replacement Battery
SRT192RMBP2US
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
845
Extended Run Options
Runtime
Efficiency
Communications & Management
Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
480Joules
Physical
Maximum Height
5.1inches (130MM, 13.0CM)
Maximum Width
17.0inches (432MM, 43.2CM)
Maximum Depth
28.32inches (719MM, 71.9CM)
Net Weight
123.0lbs. (55.79KG)
Shipping weight
142.0lbs. (64.41KG)
Shipping Height
12.99inches (330MM, 33.0CM)
Shipping Width
24.02inches (610MM, 61.0CM)
Shipping Depth
37.8inches (960MM, 96.0CM)
Color
Black
