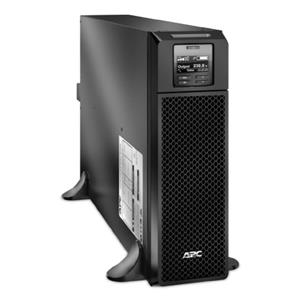

APC SRT5KXLT 5000VA 208V 4800W On-Line Double Conversion Smart-UPS Network Tower

APC SRT5KXLT 5000VA 208V 4800W On-Line Double Conversion Smart-UPS Network Tower

Quick Overview

Contact : Miro - ☎: +1-410-662-6380 ext117 or eMail

Warranty: 30 Days Exchange/Money Back (1year On Batteries)

$2,750.00

SKU: MR_SRT5KXLT-RNEW

Availability: 2 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

APC SRT5KXLT 5000VA 208V 4200W On-Line Double Conversion Tower Smart-UPS Network Ready

Shipping/Packaging: Item is Heavy and best way to ship is in multiple Boxes, We will Remove battery cartridges and ship it in separate box, or ship via Freight(to Commercial Address With Loading Dock).
Condition: Item Is in Grade "A" Condition and Comes With new internal Batteries.
Warranty: 1 Year warranty on the Batteries(Brand New Batteries) 90 days on the UPS from Seller

Output

Output power capacity
4.8 KWatts / 5.0 kVA
Max Configurable Power (Watts)
4.8 KWatts / 5.0 kVA
Nominal Output Voltage
208V
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections

(2) NEMA L6-20R (Battery Backup)

(2) NEMA L6-30R (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
208V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
NEMA L6-30P
Cord Length
10ft ( 3.05meters )
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275 (half load)V
Number of Power Cords
1
Other Input Voltages
240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
1.5hour(s)
Nominal Battery Voltage
192V
Replacement Battery
APCRBC140
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-SRT-5000VA-RM-208V
Runtime

View Runtime Graph

View Runtime Chart
Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
556Joules

Physical

Maximum Height
5.1inches ( 130mm , 13.0CM )
Maximum Width
17.0inches ( 432mm , 43.2CM )
Maximum Depth
28.32inches ( 719mm , 71.9CM )
Rack Height
3U
Net Weight
123.0lbs. ( 55.79KG )
Shipping weight
150.0lbs. ( 68.04KG )
Shipping Height
12.99inches ( 330mm , 33.0CM )
Shipping Width
24.02inches ( 610mm , 61.0CM )
Shipping Depth
37.8inches ( 960mm , 96.0CM )
Color
Black

Specifications

Brand	APC
Type	Enterprise/Data Center UPS
Voltage Compatibility	208 V
Maximum Power	More than 1500 W
Features	Cold Start, Rack Mountable
Compatible Brand	For APC
Color	Black
Model	APC SRT5KXLT
MPN	SRT5KXLT
Number of Outlets	4
Item Height	17.01 in
Modular	No
