Details

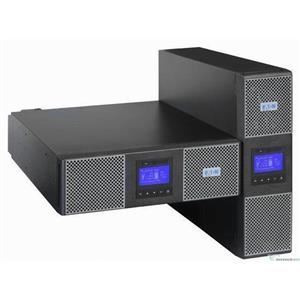

Eaton 9PX5K Double-Conversion On-Line 5000VA 4500W 208V-240V Rackmount 3U UPS
Network Card-MS included
Condition: Item is Refurbished by seller, Load Tested, New Internal Batteries (1Year Warranty on Batteries)
Warranty: 1 year warranty on the Batteries 30Days on the UPS from Seller
Options: UPS is configured as Rack-mountable and Comes with Full Rail/Ears kit
Manufacturers Link Interact With a 9PX
| General | |
| Topology | Double-conversion online |
| Configuration | Rack/Tower |
| Catalog Number | 9PX5K |
| Color | Black and silver |
| Rating (VA/Watts) | 6000/5400 |
| Diagnostics | Full system self test at power up |
| UPS Bypass | MBP6K208 optional |
| Dimensions (H x W x D, inches) | 5.1 (3U) x 17.3 x 28.4 |
| Dimensions (H x W x D, mm) | 130 (3U) x 439 x 721 |
| Weight (kg) | 48 |
| Weight (lbs) | 106 |
| Warranty | 1 year |
| Rail Kit Included | 4-post rail kit and tower pedastals included |
| Remote Emergency Power off (REPO) | ROO/RPO: Rear deck emergency stop connectors (for remote on/off and power off) |
| Contents (Ships with the following items) |
9PX5K 5 kVA UPS Network-MS Web/SNMP card 4-post rail kit |
| Electrical Input | |
| Connection |
(1) Terminal block with L6-30P
 |
| Input Cord | 6 feet (1.8 meters) |
| Input Voltage Range | Full load: 176-276V, Derating: 100-276V |
| Nominal Voltage | 208V default (200/208/220/230/240V) |
| Frequency | 50/60 Hz |
| Frequency Range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input Power Factor | >99 |
| Input Current Distortion | <5% |
| Electrical Output | |
| Nominal Voltage | 208V default (200/208/220/230/240V) |
| Output voltage regulation | ±1% steady-state |
| Voltage THD | <2% for linear loads |
| Output Receptacles |
(2) NEMA L6-20R
 (2) NEMA L6-30R
 Hardwired - see manual for terminal block layout
 |
| Power Factor | 0.9 |
| Transfer Time | 0 ms |
| Circuit Breaker | (2) 20A for L6-20R |
Specifications
| Condition | New |
|---|---|
| Brand | Eaton |
| Type | Enterprise/Data Center UPS |
| Voltage Compatibility | 208 V, 220 V, 230 V, 240 V |
| MPN | Does not apply |
| Outlets | 4 |
