Details

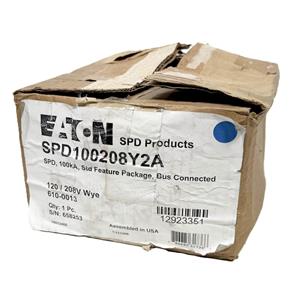

Item is New in Open Box.
Electrical & Performance Ratings
- Voltage Rating: 120/208V wye (3-phase, 4-wire plus ground)
- Surge Current Capacity: 100 kA per phase
- Short-Circuit Current Rating (SCCR): 200 kA
- Nominal Discharge Current (\(I_{n}\)): 20 kA
- Maximum Continuous Operating Voltage (MCOV): 150 L-N, 150 L-G, 150 N-G, 300 L-L
- Operating Frequency: 50/60 Hz
- Modes of Protection: L-G, L-L, L-N, N-G
- Mounting Method: Internal integrated, designed to mount directly to bus panelboards (compatible with Eaton PRL1a, 2a, 3a, and 3e architectures)
- Feature Package: Standard feature package, which includes an audible alarm with a silence button, Form C relay contacts, a surge counter with a reset button, and status indicator LEDs.
- EMI/RFI Filtering: Provides up to 50 dB of noise attenuation from 10 kHz to 100 MHz
- Dimensions: 9.5 in L x 5.4 in W x 3.45 in H
- Weight: 3.5 lbs. (approx. 1.66 kg)
- Operating Temperature: -40°C to 50°C (-40°F to 122°F)
- Operating Humidity: 5% to 95% non-condensing
- Safety Standards: UL 1449 (4th Edition recognized component), UL 1283
- Seismic Ratings: Meets or exceeds requirements for IBC 2006, CBC 2007, and UBC Zone 4
