Details
Item is New.

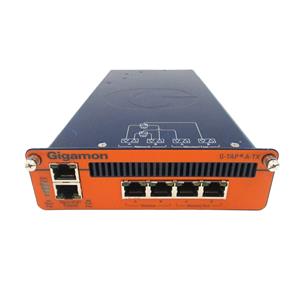

The GigaTAP A Series is a line of network TAPs designed with the Gigamon "Always On" architecture. This one-of-a-kind architecture eliminates network link downtime on network connections through the use of up to four power sources, including alternating current (AC), direct current (DC), Power over Ethernet (PoE), and on-board battery backup. While using any of the primary forms of power (AC, DC, PoE), the unique design of G-TAP A Series constantly charges the integrated backup battery, which allows it to assume power load in the event of a primary power failure. This eliminates link downtime associated to link renegotiation on the network devices connected to the TAP.
The G-TAP A Series also provides intelligent management capabilities that monitor link states of connected devices and the power state of all sources of power. In the event that primary power is lost, SNMP traps alert users that the TAP is utilizing the backup battery. The SNMP traps are re-triggered as battery levels drop to ensure rapid alert and renewal of the primary power source, eliminating further network downtime. The G-TAP A Series' intelligent monitoring also offers an added level of network security to your network by providing SNMP trap alerts when existing links are removed or when new links are added. The G-TAP A Series 2 has the additional capabilities of being managed by GigaVUE-FM (along with other GigaVUE visibility nodes), secure CLI login via SSH, and SNMP version 3 for issuing trap notifications.
Networking
- Ports Qty: 4
- Connectivity Technology: Wired
- Cabling Type: 1000Base-T, 10GBase-T
- Data Link Protocol: GigE, 10 GigE
- Data Transfer Rate: 10 Gbps
- Remote Management Protocol: SNMP 1, Telnet, SNMP 2c, TFTP
- Features: ARP support, VLAN support, IPv6 support, PoE+, IPv4 support, SNMP trap, DHCP client, Internet Control Message Protocol (ICMP), "Always On" architecture
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Specifications
| Brand | Gigamon |
|---|---|
| Type | Ethernet Switch |
| Number of LAN Ports | 4 |
| Ethernet Technology | Gigabit Ethernet (1000-Mbit/s) |
| Model | Gigamon GTP-ATX01 |
| Interface | Ethernet (RJ-45), SFP |
| Maximum Data Transfer Rate | 10 Gbps |
| Form Factor | Rack Mountable |
| Maximum LAN Data Rate | 1000 Mbps/1 Gbps |
| Network Connectivity | Wired-Ethernet (RJ-45) |
| MPN | GTP-ATX01 |
| RAID Levels | 0+1 |
| Condition Description | An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent working condition. This item may have cosmetic blemishes and may or may not be in original packaging. See the listing description for full details. |
