Gigatronics 8542C Dual Input Universal Digital Power Meter

$375.00
SKU: AR_Gigatronics 8542C

Availability: 1 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

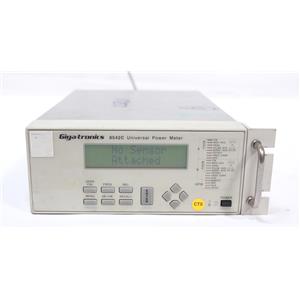

Up for sale is a used Gigatronics 8542C Dual Input Universal Digital Power Meter.

It has been power on tested.


Original Manufacturer Description:

The 8542C is a digital-controlled, self-calibrating dual channel power meter. It can measure RF and microwave signal power over a wide range of frequencies and levels in a variety of measurement modes. They can be operated locally from the front panel or remotely over the General Purpose Interface Bus (GPIB). The Model 8542C offers enhanced performance in the measurement of complex modulation signals in the communication industry.
  • Features
  • CW, modulated and peak power sensors
  • > 2000 readings/second in the Fast Buffered Mode (GPIB only)
  • 90 dB dynamic range CW sensors
  • +0.5% linearity
  • HP 437B, and 436 native mode emulation (GPIB only)
  • EEPROM based CAL FACTOR correction sensors
  • Modulated Average Power (MAP) mode
  • Pulse Average Power (PAP) mode
  • Burst Average Power (BAP) mode
