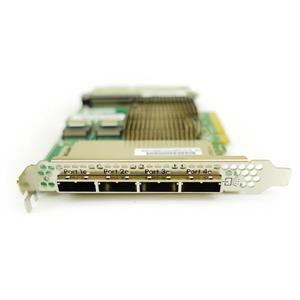

HP 615418-B21 Smart Array P822 2GB FBWC 2-ports-Int / 4-ports Ext SAS RAID Controller 6Gb/s PCIe

$89.00 $37.77
SKU: OG-615418-B21-REF

Availability: 2 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

Smart Array P822 controller board PCIe3 x8 full-height, half-length SAS RAID controller - Has two internal mini-SAS connectors and four external mini-SAS connectors for up to 6Gb/sec transfer rate for SAS and SATA + Capacitor pack with cable, provides back up power to the 2GB flash-based write cache (FBWC) memory module.

Relevant part numbers: 643379-001; 615418-B21; 633543-001

The HP Smart Array P822 2GB FBWC 2-ports-Int / 4-ports Ext SAS RAID Controller 6Gb/s PCIe Full height, 6 Gb/s, PCIe 3.0, Serial Attached SCSI (SAS) RAID controller that provides enterprise class, second generation storage performance, maximum external scalability, and data protection for select HP ProLiant Gen8 rack servers and tower servers. It features two internal and four external SAS ports. Advanced storage functionality, including online RAID level migration with flash backed write cache (FBWC), global online spare, and pre-failure warning all result in increased server uptime. Data compatibility gives customers an easy upgrade path to future Smart Array Controllers. HP Smart Array Advanced Pack 2.0 is included with this controller providing advanced functionality, including features such as RAID 1 ADM (Advanced Data Mirroring), making it easier for customers to protect their data.

More info - https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=c04111513

 • Two Mini SAS 4i connectors for attachment to internal drive backplanes & Four Mini SAS 4x connectors for attachment to JBODs and external tape drives.
 • 6 Gb/s SAS technology delivers up to 600 MB/s per physical link & 6 Gb/s SATA technology delivers up to 600 MB/s for directly attached SATA drives.
 • Up to 4x better Solid State Disk (SSD) read performance with the SSD Smart Path firmware and driver based feature for Smart Array controllers.
 • Mix-and-match SAS and SATA drives. Deploy drive technology as needed to fit the computing environment & Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries.
 • Universal Drive form factors (2.5" and 3.5") are used across multiple HP servers, disk enclosures and storage systems. With compatibility across many enterprise platforms, you are free to deploy and redeploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives
 • RAID controller features 2GB flash-backed write cache RAID 0, 1, 1+0, 5, 6, 50, 60, and 1 ADM & Recovery ROM protects against ROM corruption
 • Host interface PCI-e 3.0 8x host interface provides up to 8 GiB/s in each direction.
 • The P822 2GB array accelerator features a flash-backed write cache. If the cache DRAM contains data when power is lost, the data is copied into flash memory of the cache module, drawing power from attached capacitors. When power is restored, if the flash memory chips contain write data, the data is copied back into the DRAM so it can be flushed to the drives.

Specifications

Condition Used
Brand HP
External Interfaces SAS, SATA III
Type RAID Controller Card
Number of Ports 4 Ports
Model P822
MPN 615418-B21
Form Factor tall bracket
Internal Interfaces SAS, SATA III
RAID Levels 1, 5, 6
Country/Region of Manufacture Unknown
Manufacturer Warranty None
Interface Card Type RAID Cards
Compatible Port/Slot PCI Express x8
Condition Description USED - WORKGING - PULLS
