Details
Item is Used with Normal Wear and Tear, Tested and Working.
Features

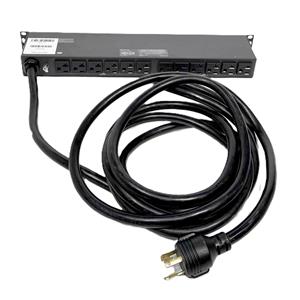

- 30A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency derated to
- 24A continuous)
- Two-digit lighted meter reports total PDU input current in amps
- Attached L5-30P 30A 120V input plug with 15-ft. (4.57 m) line cord
- 1U horizontal rackmount format installs in one rack space
- 12 NEMA 5-15/20R outlets
- Outlets are arranged in two loading banks, each with separate 20A breaker protection
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and
- under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
INPUT
- Input Phase: Single-Phase
- PDU Input Voltage: 120
- Recommended Electrical Service: Single-phase 30A 120V service
- Maximum Input Amps: 24
- Maximum Input Amps Details: Agency de-rated to 24A continuous
- PDU Plug Type: NEMA L5-30P
- Input Cord Length (ft.): 15
- Input Cord Length (m): 4.57
- Output Capacity Details: 2.88kW (120V) / 24A total capacity; 20A max per breaker load bank; 16A max per outlet
- Frequency Compatibility: 50 / 60 Hz
- Output Receptacles: (12) 5-15/20R
- Output Nominal Voltage: 120V
- Overload Protection: Two 20A breakers protect 6 outlets each
- Front Panel LCD Display: Two-digit current meter reports PDU input current in amps
- Automatic Shut-Off: No
- Material of Construction: Metal
- Rack Height: 1U
- Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
- Minimum Required Rack Depth (cm): 29.21
- Minimum Required Rack Depth (inches): 11.5
- Outlets Measurement (Center to Center): Distance between outlets = 30.20mm; Distance between Bank 1 and Bank 2 = 41.45mm
- PDU Form Factor: Horizontal (1U)
- Shipping Dimensions (hwd / in.): 11.00 x 3.20 x 20.20
- Shipping Dimensions (hwd / cm): 27.94 x 8.13 x 51.31
- Shipping Weight (lbs.): 6.10
- Shipping Weight (kg): 2.77
- Unit Dimensions (hwd / in.): 1.750 x 17.500 x 6.500
- Unit Dimensions (hwd / cm): 4.45 x 44.5 x 16.5
- Unit Weight (lbs.): 7
- Unit Weight (kg): 3.18
- Operating Temperature Range: 32° to 104°F (0° to 40°C)
- Storage Temperature Range: -22° to 122°F (-30° to 50°C)
- Relative Humidity: 5% to 95% non-condensing
- Operating Elevation: 0-10000 ft. (0-3000 m)
- Grounding: Rear grounding lug
- Product Certifications: RETIE (Colombia); NOM (Mexico); UL 60950-1
- Product Compliance: RoHS
Specifications
| Brand | Tripp Lite |
|---|---|
| MPN | PDUMH30 |
| Condition Description | An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent working condition. This item may have cosmetic blemishes and may or may not be in original packaging. See the listing description for full details. |
-
